GH6266A Chinese high precision engine metal gap bed lathe machine

FOB Reference Price:Get Latest Price
$4,500.00 - $15,000.00 / Sets | 1 Set/Sets GH6266A Chinese high precision engine metal gap bed lathe machin (Min. Order)
Model Number:
GH6266A
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
color (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
Manual
Place of Origin:
Shandong, China
Brand Name:
UNI-TECH
Voltage:
220/380/400V
Dimension(L*W*H):
3240x1140x1840mm
Certification:
CE,ISO9001
Name:
GH6266A Chinese high precision engine metal gap bed lathe machine
Max.Swing over bed:
660mm
Max.Swing over carriage:
440mm
Max.Swing in gap:
900mm
Max.length of work piece:
1500mm/2000mm/3000mm
Width of bed:
400mm
Section of turning tool:
25x25mm
Spindle bore:
105mm
Main motor:
7.5KW(10HP)
Machine Type:
Chinese high precision engine metal gap bed lathe machine
After-sales Service Provided:
Overseas third-party support available
Max. Swing Diameter:
660mm
Power(W):
7.5KW
Weight:
3535kg
Supply Ability
Supply Ability:
30 Set/Sets per Month GH6266A Chinese high precision engine metal gap bed lathe machin
Packaging & Delivery
Packaging Details
GH6266A Chinese high precision engine metal gap bed lathe machine
324x114x184cm(1500mm)
374x114x184cm(2000mm)
474x114x184cm(3000mm)
WOODEN CASE,PLASTIC COVER INSIDER
Port
ANY PORT IN CHIAN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated

GH6266A Chinese high precision engine metal gap bed lathe machine

Product Description

GH6266A is Chinese high precision engine metal gap bed lathe machine, it with the big spindle bore diameter 105mm, and bed width is 400mm, it has good stability and rigidity. Different distance between centers 1500/2000/3000mm for your choice. And whole or segregate foot stand can be ordered according to your requirements.

1.Main Features of our GH6266A Chinese high precision engine metal gap bed lathe machine:

1.2  Axis digital readout system

1.3  2.Taper turning attachment fitted to saddle

1.4  3.Triple bearings supporting headstock spindle

1.5  4.Quick change toolpost with additional holders

1.6  Adjustable taper roller bearings providing spindle accuracy

1.7  Precision 'V'-beds & headstock gears are all hardened & ground

1.8  Multiple discs forward and reversing clutch system

1.9  Overload protection on drive motor and coolant system

1.10 Universal enclosed gearbox incorporating metric & imperial thread capabilities

1.11 Foot operated spindle brake with safety cut out switch

1.12 X & Z axis rapid traverse selection lever incorporated on the saddle @ 4.5m/min

1.13 400mm wide induction hardened heavy duty cast iron bed

1.14 Removable gap bed allowing work piece to swing up to 900mm

1.15 Cross slide handle disengages when auto feed is used

1.16 Saddle hand wheel disengages when auto feed is used

1.17 Adjustable clutch for auto feeds protects machine from overloading during machining

1.18 Chuck guard fitted with safety micro switch

1.19 Micro switch on side access door

1.20 Powered longitudinal and cross feeds

1.21 Metric / imperial calibrated feed dials

1.22 Coolant system with flexible hose enabling flow control & direction

1.23 Oil sight glass for head stock and gearbox & apron

1.24 Lubrication pump on saddle oiling slides

1.25 Low voltage halogen work light

1.26 D1-8 camlock spindle for quick chuck removal

1.27 16 spindle speeds 25-1600rpm

1.28 Large 105mm spindle bore

1.29 7.5kW / 10HP 415V main motor



Main specification

2.Main Specification of  GH6266A Chinese high precision engine metal gap bed lathe machine:

MACHINE TOOL TYPEGH-6266AGH-6280Q
CAPACITY
Swing Over SlideΦ660mm
Swing Over Cross SlideΦ440mmΦ570mm
Swing in Gap DiameterΦ900mmΦ1035mm
Length of Gap250mm
Center Height330mm
Distance Between Centers1500mm/2000mm/3000mm
Width of Bed400mm400mm
Max. Section of Tool25mm × 25mm
Max. Travel of Cross Slide368mm420mm
Max. Travel of Compound Rest230mm230mm
HEADSTOCK
Spindle BoreΦ105mm
Spindle NoseD1-8
Taper of Spindle BoreΦ113mm(1:20)/MT5
Spindle Speed Number16
Range of Spindle Speed25~1600rpm25~1600rpm
FEEDS AND THREADS
Leadscrew PitchΦ40mm×2T.P.I. or Φ40mm×12mm
Inch Threads Range7/16~80T.P.I. (54 kinds)
Metric Threads Range0.45~120mm (54 kinds)
Diametrical Pitches Range7/8~160DP (42 kinds)
Module Pitches Range0.25~60MP (46 kinds)
Longitudinal Feeds Range in Metric Lead Screw0.044~1.48mm/rev (25 kinds)
Longitudinal Feeds Range in Inch Lead Screw0.00165"~0.05497"/rev (25 kinds)
Cross Feeds Range in Metric Lead Screw0.022~0.74mm/rev (25 kinds)
Cross Feeds Range in Inch Lead Screw0.00083"~0.02774"/rev (25 kinds)
TAILSTOCK
Quill travel235mm
Quill diameterΦ90mm
Quill taperMT5
MOTOR
Main motor power7.5kW(10HP)
Coolant pump power0.09kW (1/8HP)
DIMENSION AND WEIGHT
Overall Dimension (L×W×H)

321x123x160cm(1500mm)

371x123x160cm(2000mm)

471x123x160cm(3000mm)

321x123x167cm(1500mm)

371x123x167cm(2000mm)

471x123x167cm(3000mm)

Packing Size (L×W×H)

324x114x184cm(1500mm)

374x114x184cm(2000mm)

474x114x184cm(3000mm)

324x114x191cm(1500mm)

374x114x191cm(2000mm)

474x114x191cm(3000mm)

Net Weight3060/3345/3710kg3220/3505/3870kg
Gross Weight3535/3835/4310kg3705/4005/4480kg

Standard Accessories:

3-Jaw chuck, 4-Jaw chuck, steady rest, follower rest, work lamp,

face plate, longitudinal automatic trip, oil gun, coolant system, brake system,

operation manual

Optional Accessories:

SINO DRO 2-axis

Quick change tool post

Live center

Turning tools

Lead screw cover

Toolpost cover

Chuck cover

CE standard

Detailed Images

3.Detailed Images of GH6266A Chinese high precision engine metal gap bed lathe machine:

Packaging & Shipping

Packing size:

324x114x184cm(1500mm)

374x114x184cm(2000mm)

474x114x184cm(3000mm)

Package: standard export lathe machine package plyw/case

Our Services

We also would like to let you know our warranty about GH6266A Chinese high precision engine metal gap bed lathe machine.

What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
   1) Our quality guarantee time is 12 months since the machine on board
   2) During this period, if the machine break down owing our machine itself quality problem,  we will prepare the spare parts and send to you by free within 5 days. all these will be by free.

  3) If the break down is caused by the mis operation,  we of course will supply you the spare parts, but we have to charge you the costs prices.

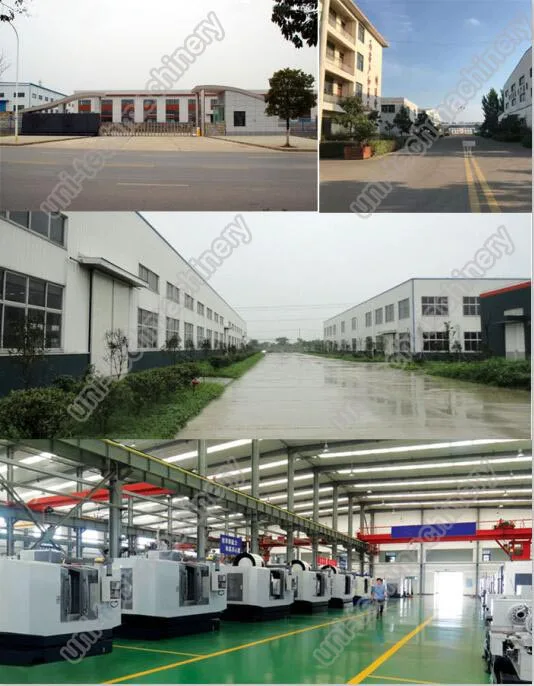

Company Information
Every month, we will export almost 500 sets machine in the worldwide. We think we can give you the most comprehensive support not only service but also techniques.
FAQ

PAYMENTS:  1.TT 30% advance payment product,pay the balance before delivery.

                      2.L/C at sight.

COLOR, VOLOTAGE, POWER according to the client's requirement .
